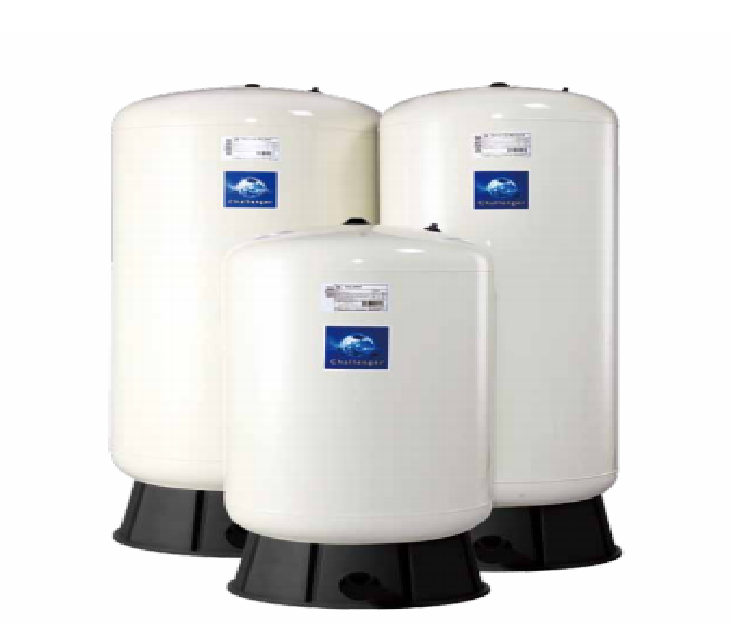

H2Pro Challenger Series GCN-25GV_336

gcn-25gv
Move your mouse over image
H2Pro Challenger Series
Move your mouse over image
H2Pro Challenger Series
Move your mouse over image
H2Pro Challenger Series
Move your mouse over image
H2Pro Challenger Series
Move your mouse over image
H2Pro Challenger Series
Move your mouse over image
FeaturePatented CAD-2 diaphragm technology NSF Standard 61, CE/PED, WRAS, ACS, ISO-9001, Gost, Evrazes approved Stainless steel water connection Condensation reducing designTwo part polyurethane, epoxy primed paint finish Leak free air valve cap sealed with closed cell foam Comprehensive testing No maintenanceChallenger™ tanks are ideally suited for a wide range of applications, including booster systems, thermal expansion, heating expansion, irrigation systems, and hydraulic hammer arresting.Water Chamber, Patented Controlled Action Design: Efficient and cost effective, Challenger™ tanks are designed with a patented controlled action CAD-2 diaphragm assembly. It features a chlorine resistant 100% butyl diaphragm with a precision molded copolymer polypropylene liner for superior air and water separation. The CAD-2 diaphragm assembly is clenched together with a positive lock internal clench ring which contains drawdown water in a pre-charged air atmosphere, thus providing separation between the diaphragm and tank wall.  This “air buffer” design means few problems with condensation.  Constructed with an FDA approved high grade butyl, the diaphragm assembly seals water in a true non-corrosive chamber. On the exterior, the almond colored two part polyurethane paint finish over an epoxy undercoating provides hundreds of hours of UV and salt spray protection.The air chamber is sealed with a fixed o-ring and closed cell foam and will provide many years of leak free and service free life. Challenger™ tanks are quality tested at several stages on the production line to insure the structural integrity of every tank. Challenger™ tanks are the best steel pressure vessels in the market today and represent the best value for the investment.

Model

  • Features and Function
Feature

Patented CAD-2 diaphragm technology
NSF Standard 61, CE/PED, WRAS, ACS, ISO-9001, Gost, Evrazes approved
Stainless steel water connection
Condensation reducing design
Two part polyurethane, epoxy primed paint finish
Leak free air valve cap sealed with closed cell foam
Comprehensive testing
No maintenance

Challenger™ tanks are ideally suited for a wide range of applications, including booster systems, thermal expansion, heating expansion, irrigation systems, and hydraulic hammer arresting.
Water Chamber, Patented Controlled Action Design: Efficient and cost effective, Challenger™ tanks are designed with a patented controlled action CAD-2 diaphragm assembly. It features a chlorine resistant 100% butyl diaphragm with a precision molded copolymer polypropylene liner for superior air and water separation. The CAD-2 diaphragm assembly is clenched together with a positive lock internal clench ring which contains drawdown water in a pre-charged air atmosphere, thus providing separation between the diaphragm and tank wall.  This “air buffer” design means few problems with condensation.  Constructed with an FDA approved high grade butyl, the diaphragm assembly seals water in a true non-corrosive chamber.
On the exterior, the almond colored two part polyurethane paint finish over an epoxy undercoating provides hundreds of hours of UV and salt spray protection.
The air chamber is sealed with a fixed o-ring and closed cell foam and will provide many years of leak free and service free life. Challenger™ tanks are quality tested at several stages on the production line to insure the structural integrity of every tank. Challenger™ tanks are the best steel pressure vessels in the market today and represent the best value for the investment.

Specifications

98.4 | 26
40.68 | 16.02
1"
CHALLENGER
